ON/OFF SWITCH CHECK
Set Appliance State:
Mains Power Off
Gas Off
Set Multimeter to AC Voltage
ON/OFF Switch set to ON.
WARNING!
- Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On
Measurement:

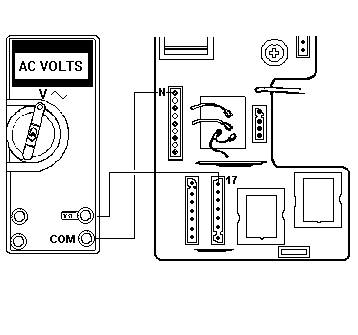

Measure voltage between N and 17.
MAINS PRESENT.
MAINS ABSENT.
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
