Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Summer/Winter Switch set to Summer.
Measurement:
HW tap OFF.

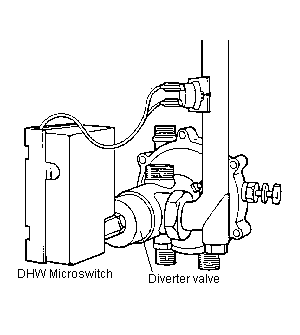

Operating pin fully retracted inside diverter valve.
Turn ON HW tap.
Operating pin comes out of diverter valve and operates dual microswitch assembly.
Turn OFF HW tap.
Operating pin fully retracts into diverter valve.
Operating pin fully retracted inside diverter valve.
Turn ON HW tap.
Operating pin comes out of diverter valve and operates dual microswitch assembly.
Turn OFF HW tap.
Operating pin fully retracts into diverter valve.
