Set Appliance State:
Mains Power Off
CH Demand
Summer/Winter Switch set to Winter.
Heating Thermostat to MAX.
Only one radiator on.
Heating Thermostat to MAX.
Only one radiator on.
Gas On
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
With the boiler alight in CH mode - run for three mins, remove demand for heating.
Does pump continue to run?

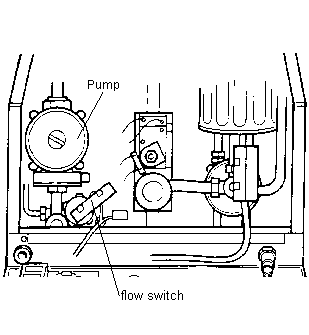

Observe flow switch, is it still closed?
Pump continues to run and Switch is closed.
Does pump continue to run?
Observe flow switch, is it still closed?
Pump continues to run and Switch is closed.
Isolate as per TOPs P4
and refit as necessary
