Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Remove ignition lead from spark generator and make safe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if required.

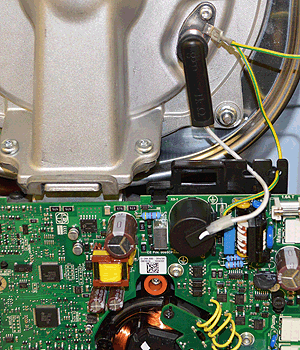

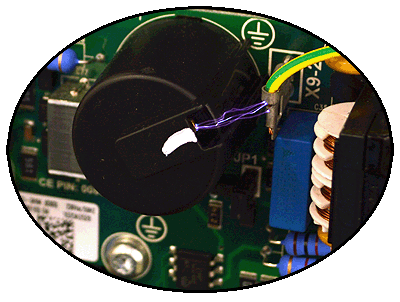

Approximately 4 seconds after the fan has started a strong consistent spark should be seen between the spark generator output terminal and the PCB earth connection.
This will occur five times before ignition lockout occurs.
Is there a strong consistent spark?
Note.
Reset appliance as required until test is complete.
Approximately 4 seconds after the fan has started a strong consistent spark should be seen between the spark generator output terminal and the PCB earth connection.
This will occur five times before ignition lockout occurs.
Is there a strong consistent spark?
Note.
Reset appliance as required until test is complete.
Isolate as per TOPs P4
and refit as necessary
