Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Boiler drained and discharged
Observation:

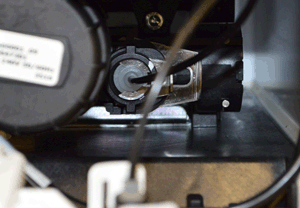

Remove and inspect the heating circuit filter.

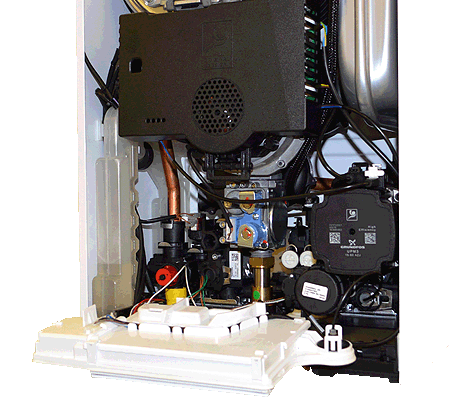

This is located to the right of the diverter valve behind the pressure gauge connection.
Access can be improved by removing the diverter valve actuator head.
This is located to the right of the diverter valve behind the pressure gauge connection.
Access can be improved by removing the diverter valve actuator head.
Isolate as per TOPs P4
and refit as necessary
