Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

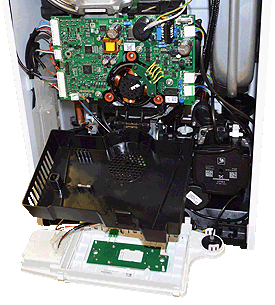

Disconnect the harness from the display PCB
Measurement:
Measure the resistance between the pins on X6 and the display harness connector as listed below:
Expect continuity / zero resistance on each of the wires.
Also visually inspect the condition of the harness.
| Pin on connector X6 | Display harness connector | 1 (Black) | Black |
| 2 (Red) | Red |
| 3 (White) | White |
| 4 (Green) | Green |
Expect continuity / zero resistance on each of the wires.
Also visually inspect the condition of the harness.

Isolate as per TOPs P4
and refit as necessary
