Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to main PCB

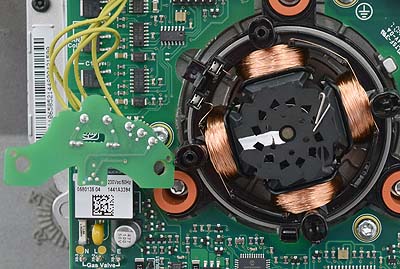

Undo the 2 screws and remove the fan driver PCB from the fan to expose the fan terminals
Undo the 2 screws and remove the fan driver PCB from the fan to expose the fan terminals
Measurement:
Test 1.
Measure the resistance across the exposed fan terminals.
Expected resistance approximately 78 ohms.
Test 2.
Measure the resistance across an exposed fan terminal
and a suitable earth connection.
Expected resistance greater than 1 Mohm.
Measure the resistance across the exposed fan terminals.
Expected resistance approximately 78 ohms.
Test 2.
Measure the resistance across an exposed fan terminal
and a suitable earth connection.
Expected resistance greater than 1 Mohm.

Isolate as per TOPs P4
and refit as necessary
