INSPECTION DIVERTER VALVE - FUSE INVESTIGATION

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Remove electrical connector from the diverter motor
Remove locking pin and release the diverter motor
Note.
The diverter motor can be removed without the need for draining

Observation:

Inspect the following diverter valve components for signs of water ingress:

sm.iqe comfort 30.dvm.pins and spindle.gif

1. Motor spindle and electrical connections

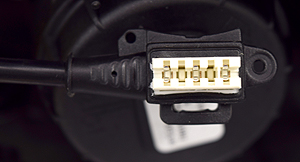

2. Motor electrical connector

3. Diverter valve cartridge
