Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to AC Volts
CH Demand
Use Insulation Mat as required

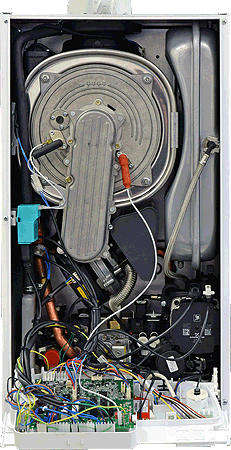

Gain access to the PCB
Gain access to the PCB
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Once the boiler fires for a CH demand (this may take up to 3 minutes) measure the voltage between pins 1 (Blue) and 3 (Black) of plug X13.
Expect mains voltage.
Note:
The colour of the wires may vary as there are different harnesses
through the boiler production but test points will remain the same.
Expect mains voltage.
Note:
The colour of the wires may vary as there are different harnesses
through the boiler production but test points will remain the same.
Isolate as per TOPs P4
and refit as necessary
