Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Remove the electrical plug from the black modulation solenoid
Remove the electrical plug from the black modulation solenoid
Measurement:

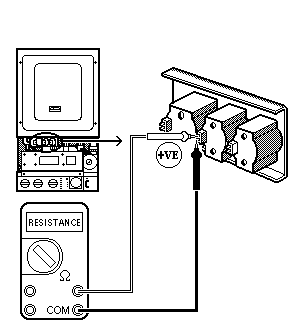

Measure the resistance across the solenoid.
The resistance measured should be approximately 150 ohms.
The resistance measured should be approximately 150 ohms.

Isolate as per TOPs P4
and refit as necessary
