Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Remove the electrical plugs to the blue and grey solenoids
Remove the electrical plugs to the blue and grey solenoids
Measurement:

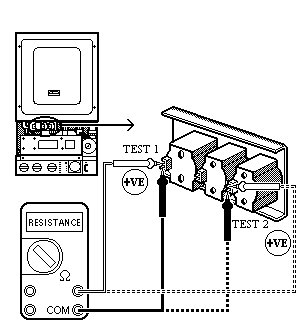

Test 1: Measure the resistance across the blue solenoid.
Test 2: Measure the resistance across the grey solenoid.
The resistance measured should be approximately 130 ohms for both tests.
Test 2: Measure the resistance across the grey solenoid.
The resistance measured should be approximately 130 ohms for both tests.

Isolate as per TOPs P4
and refit as necessary
