Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Hinge down the electrical box and remove small PCB cover
Hinge down the electrical box and remove small PCB cover
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

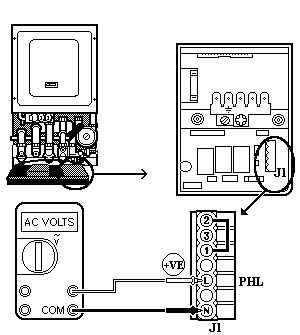

Measure the voltage across the Live (brown wire, marked PHL) and the Neutral (blue wire, marked N) on the connector J1 on the PCB.

Isolate as per TOPs P4
and refit as necessary
