Set Appliance State:
Mains Power Off
CH Demand

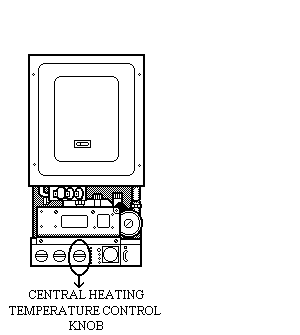

Heating Temperature Control to Maximum
Gas On
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
Operate the boiler in CH mode and allow system to heat. Decrease the boiler temperature control setting until the burner modulates down and goes out indicating boiler temperature has been reached.
Increase temperature control setting to maximum position. There should be a delay of approximately 3 minutes before the burner re-ignites.
Note:
It may be necessary to reduce heating load by turning off some radiators to reduce time taken for this test.
Increase temperature control setting to maximum position. There should be a delay of approximately 3 minutes before the burner re-ignites.
Note:
It may be necessary to reduce heating load by turning off some radiators to reduce time taken for this test.
