G.C. Number 47 077 02
From Serial Number:- 296057236
Case Removal

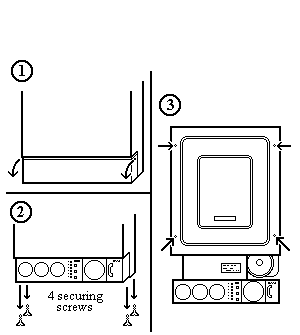

Hinge down lower door panel and spring off.
Remove the four securing screws, slide and lift away the outer case.
Remove the four screws securing the front panel.
Remove front panel by lifting its lower edge forwards and upwards, and disengage the lugs at the top corners.
Note
In some tests it is necessary to place multimeter test probes at certain points on the printed circuit boards, it is IMPORTANT to place the probes on the exact points shown.
From Serial Number:- 296057236
Case Removal
Hinge down lower door panel and spring off.
Remove the four securing screws, slide and lift away the outer case.
Remove the four screws securing the front panel.
Remove front panel by lifting its lower edge forwards and upwards, and disengage the lugs at the top corners.
Note
In some tests it is necessary to place multimeter test probes at certain points on the printed circuit boards, it is IMPORTANT to place the probes on the exact points shown.
Isolate as per TOPs P4
and refit as necessary
