Set Appliance State:
Turn Hot Water Tap On
Isolate Mains Power to appliance as per TOPs P4
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

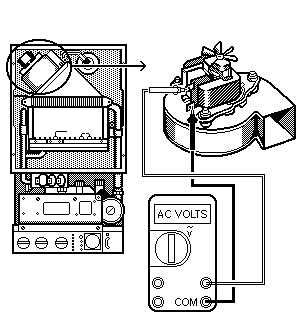

Measure voltage across the fan terminals (brown and blue wires).

Isolate as per TOPs P4
and refit as necessary
