INSPECTION DIVERTER VALVE - FUSE INVESTIGATION

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Remove electrical connector from the diverter motor
Release the securing clip and remove the diverter motor
Note.
The diverter motor can be removed without the need for draining

Observation:

Inspect the following diverter valve components for signs of water:

sm.iqe comfort 30.dvm.pins and spindle.gif

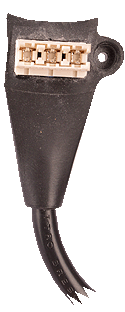

sm.iqe comfort 30.har.cn7.diverter motor end.gif

bx maineco combi 35.lower components.gif

bx maineco combi 35.j22855 dv body spindle.gif

1. Motor spindle and electrical connections

2. Motor electrical connector

3. Diverter valve cartridge
