Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CASE REMOVAL
1. Loosen the two screws located underneath the front panel.
2. Disengage the two spring clips at the lower corners of the front case, pull forwards and lift up over the top lug.

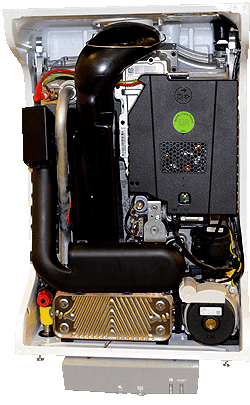

The inner chamber is now revealed.
The inner chamber is now revealed.
3. Lower the panel to gain access to the main PCB. For access to the user interaction PCB loosen the two screws underneath the appliance, the user control will now slide out.
