Set Appliance State:

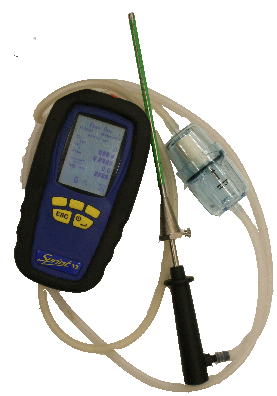

Attach FGA to combustion test point
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Set appliance into combustion mode:
(cannot be done if appliance is carrying out self-check)
1. Press ⮠ and + buttons (press ⮠ first), display
should show H3 indicating it is on maximum rate.
2. Press ⮠ again, display will show L3 indicating it is on low rate.
3. Press R to return to normal operating mode.
Check combustion values against values given
in manufacturer's instructions / ADAPT.
(cannot be done if appliance is carrying out self-check)
1. Press ⮠ and + buttons (press ⮠ first), display
should show H3 indicating it is on maximum rate.
2. Press ⮠ again, display will show L3 indicating it is on low rate.
3. Press R to return to normal operating mode.
Check combustion values against values given
in manufacturer's instructions / ADAPT.
