RESISTANCE LOW PRESSURE SWITCH HARNESS
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Remove the connector X22 from the PCB and the low pressure switch.
Measurement:

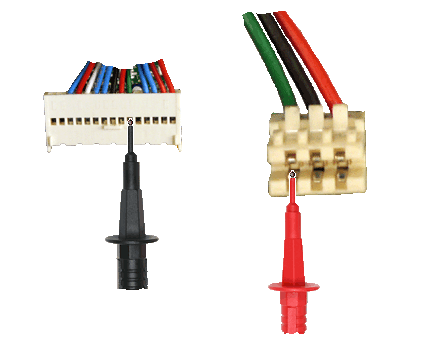

Measure the continuity of the harness between either end of each wire.
ZERO RESISTANCE OR CONTINUITY
HIGH RESISTANCE
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
