RESISTANCE LOW PRESSURE SWITCH HARNESS
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Remove the connector X22 from the PCB and the low pressure switch.
Measurement:

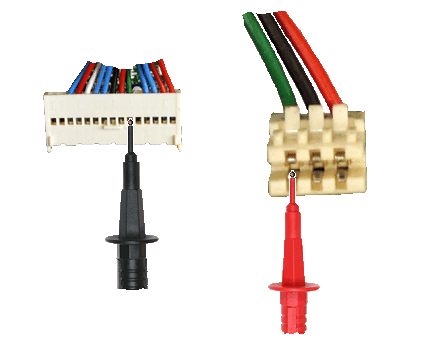

Measure the continuity (zero resistance) of the harness between either end of each wire.
RESISTANCES AS EXPECTED
RESISTANCES NOT AS EXPECTED
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
