Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Disconnect X13 from the PCB
Disconnect the lead from the diverter valve motor
Disconnect the lead from the diverter valve motor
Measurement:
Measure the resistance of each of the leads in the harness from the PCB to the diverter valve connector.
Expect Zero Resistance on each test

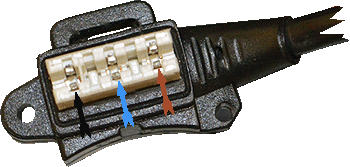

X13 pin 1 brown to brown @ diverter valve connector.
X13 pin 2 black to black @ diverter valve connector.
X13 pin 3 blue to blue @ diverter valve connector.
Expect Zero Resistance on each test
X13 pin 1 brown to brown @ diverter valve connector.
X13 pin 2 black to black @ diverter valve connector.
X13 pin 3 blue to blue @ diverter valve connector.

Isolate as per TOPs P4
and refit as necessary
