Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance
Disconnect leads from the air pressure switch noting the connections
Measurement:
Note the operating pressure indicated on the pressure switch.

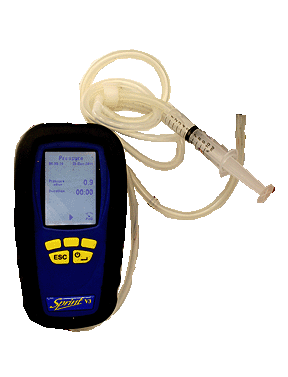

Connect the air pressure switch charge kit to +ve connection on the air pressure switch.
Increase the pressure via the syringe to that indicated on the pressure switch. Continuity / zero resistance should then be measured between common and normally open terminals on the air pressure switch.
Note:
If continuity is not obtained it is permissible to
increase the pressure by 50%.
100 Pascals = 1mbar / 50 Pascals = 0.5mbar
Connect the air pressure switch charge kit to +ve connection on the air pressure switch.
Increase the pressure via the syringe to that indicated on the pressure switch. Continuity / zero resistance should then be measured between common and normally open terminals on the air pressure switch.
Note:
If continuity is not obtained it is permissible to
increase the pressure by 50%.
100 Pascals = 1mbar / 50 Pascals = 0.5mbar
Isolate as per TOPs P4
and refit as necessary
