Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On

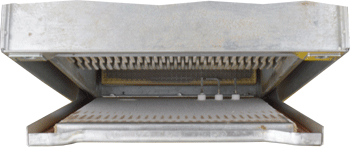

Remove the top two screws of the combustion chamber and slacken the lower two screws 2-3 turns to allow viewing of the spark electrodes as shown
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if necessary.
Allow boiler to commence its ignition sequence.
Can a strong, consistent spark be observed at the electrodes for approximately 4 seconds?
Use of a mirror may aid observation if access to the boiler is poor.
Note:
Design of electrodes may differ to that shown depending on boiler serial number, but the test remains the same.
Allow boiler to commence its ignition sequence.
Can a strong, consistent spark be observed at the electrodes for approximately 4 seconds?
Use of a mirror may aid observation if access to the boiler is poor.
Note:
Design of electrodes may differ to that shown depending on boiler serial number, but the test remains the same.
Isolate as per TOPs P4
and refit as necessary
