DHW OPERATION

Set Appliance State:

Mains Reset Switch OFF

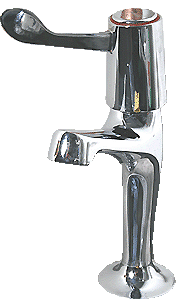

Turn Hot Water Tap On

Set DHW temperature selector to Max without preheat

WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure

Mains Power On

Measurement:

Mains reset switch On.
Allow fan to run and burner to ignite, with a flow rate at the tap of approximately;

24 CXI 9.8 l/min

30 CXI 12.3 l/min

38 CXI 15.5 l/min

1. If F14 Fault code occurs during operation please click HERE
2. A flow rate lower than specified will result in a higher temp rise, this must be taken into account when selecting the outcome of the test. To investigate a poor water flow rate from the tap CLICK HERE.

Is the operation satisfactory and with a water temperature rise maintained at approximately 35 °C ?
