RIBBON CABLE AND CONNECTIONS
Isolate Mains Power to appliance as per TOPs P4
Observation:

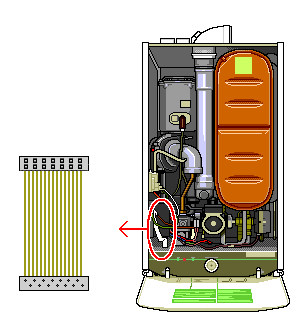

Check the ribbon cable that runs from the display PCB to the main PCB (automatic control module) for condition and good connections.
CONDITION GOOD AND PLUG CONNECTIONS FULLY HOME
CONDITION POOR OR PLUG CONNECTIONS NOT FULLY HOME
