Isolate Mains Power to appliance as per TOPs P4
Remove electrode assembly
Remove electrode assembly
Observation:
Thoroughly check spark electrode for cracks and damage to the electrode ceramics and good general condition.

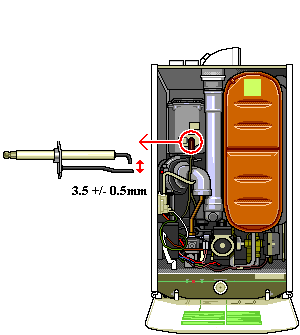

Check for correct spark gap, gap should be 3.5mm +/- 0.5mm
Check for correct spark gap, gap should be 3.5mm +/- 0.5mm
Isolate as per TOPs P4
and refit as necessary
