Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

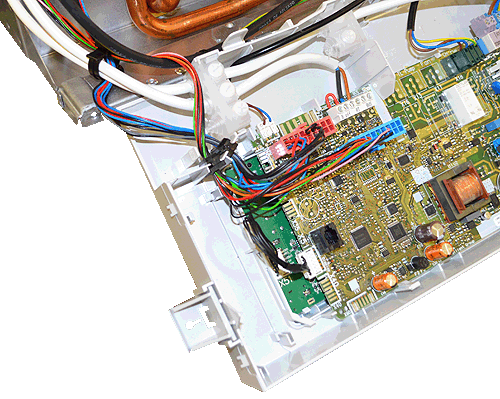

Refit connector X22 to the PCB

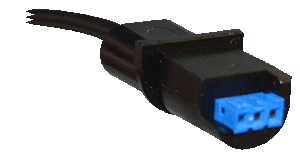

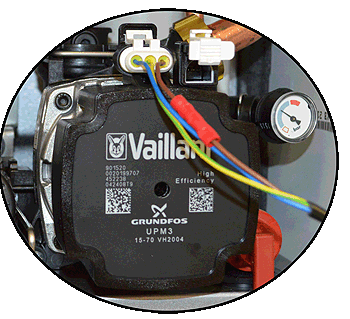

Disconnect pump speed control from the pump and make safe
WARNING! - Mains voltage is expected during test follow
TOPs P4 live testing procedure
Mains Power On

Observation:

Does the display illuminate ?
