Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Turn Hot Water Tap On
Gain access to PCB (use Insulation Mat as required)
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Measurement:
Reset appliance if required.
(Press reset button once then release)

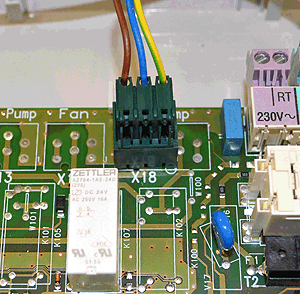

Measure the AC volts between the Brown (Live)
and the Blue (Neutral) wires on connector X18.
Expect mains voltage.
(Press reset button once then release)
Measure the AC volts between the Brown (Live)
and the Blue (Neutral) wires on connector X18.
Expect mains voltage.

Isolate as per TOPs P4
and refit as necessary
