Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

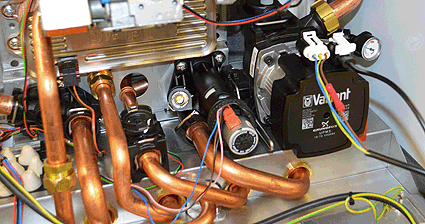

Remove the diverter valve motor from the body

Observation:

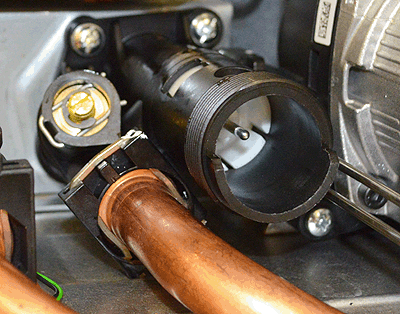

Using thin nose pliers check the movement of
the diverter valve spindle.
It should move freely in and out by approximately 10mm.
