Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Set Multimeter to Resistance
Remove connector X2 from the PCB
Measurement:
Measure resistance across the orange (pin 4) and black (pin 10) on X2.
RESISTANCE WARM START SENSOR AND HARNESS

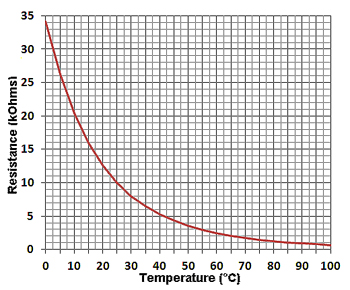

Resistances vary with temperature and should conform approximately to the table below:
| Temperature Range (°C) | Resistance Range |
|---|---|
| 0°C to 10°C | 20.0kΩ - 34.0kΩ |
| 10°C to 20°C | 13.0kΩ - 20.0kΩ |
| 20°C to 30°C | 8.0kΩ - 13.0kΩ |
| 30°C to 40°C | 5.3kΩ - 8.0kΩ |
| 40°C to 50°C | 3.5kΩ - 5.3kΩ |
| 50°C to 60°C | 2.4kΩ - 3.5kΩ |
| 60°C to 70°C | 1.7kΩ - 2.4kΩ |
| 70°C to 80°C | 1.2kΩ - 1.7kΩ |
| 80°C to 90°C | 900Ω - 1.2kΩ |
| 90°C to 100°C | 700Ω - 900Ω |
Note: Clicking on the resistance table will switch between table and graph view.
1
16
Isolate as per TOPs P4
and refit as necessary
