Set Appliance State:
Mains Power Off
Gas Off
CH Demand
ON/OFF Switch in ON position
CH Temp Selector in Maximum position
DHW Temp Selector in Minimum position
Mode Selector Switch in Heat and Hot water position
CH Temp Selector in Maximum position
DHW Temp Selector in Minimum position
Mode Selector Switch in Heat and Hot water position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Observation:
If required reset boiler, turn CH / DHW control to reset position.
Allow Fan to run and ignition sequence to commence.

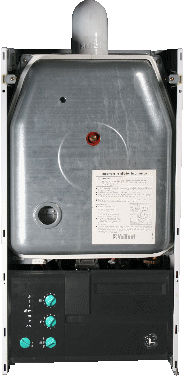

Can sparking be seen at the Ignition Electrodes?
Note.
The boiler incorporates an anti-cycling control for CH of 5 minutes, to override this turn the On/Off control to the Off (0) position then back to On (1) position after a few seconds.
Allow Fan to run and ignition sequence to commence.
Can sparking be seen at the Ignition Electrodes?
Note.
The boiler incorporates an anti-cycling control for CH of 5 minutes, to override this turn the On/Off control to the Off (0) position then back to On (1) position after a few seconds.
