XSol Diagnostic System

NTC T2 CONNECTION

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

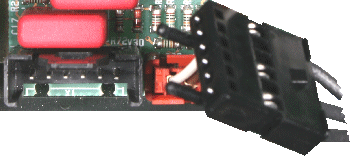

Remove X1 from CPU Board
Remove lead from NTC T2

Measurement:

Check NTC connecting lead for continuity and it's connection to CPU board at X1.
Reconnect plug X1 and the lead after the test.
