Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Gain access to PCB (use Insulation Mat as required)
Measurement:

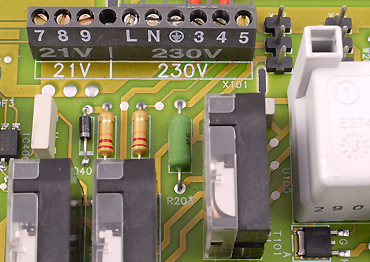

Measure the resistance across resistor R203 on the PCB.
Expected resistance approximately 68 ohms.
Expected resistance approximately 68 ohms.
