PCB FUSE
Set Appliance State:
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Measurement:

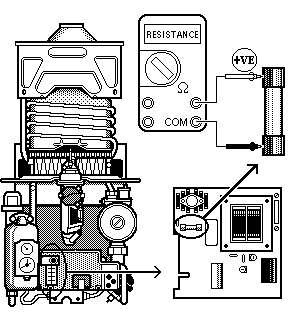

Remove the fuse located on the main PCB and check the resistance across it.
Replace fuse after test.
RESISTANCE SHORT CIRCUIT
RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
