Set Appliance State:
Mains Power Off
Boiler On/Off Switch ON
CH Switch ON
DHW Switch in INSTANT position
CH Temperature Control in max position
CH Switch ON
DHW Switch in INSTANT position
CH Temperature Control in max position
| WARNING! Mains voltage is expected during test, follow TOPs P4 live testing procedure |
Measurement:

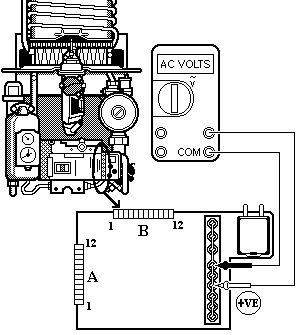

Measure the voltage across terminal marked 3 and the neutral terminal (blue wire, marked 1Mp) on the main terminal block.

Isolate as per TOPs P4
and refit as necessary
