WATER VALVE DIAPHRAGM
Set Appliance State:
Mains Power Off
Gas Off
Isolate Mains Power to appliance as per TOPs P4
Water OFF
Observation:

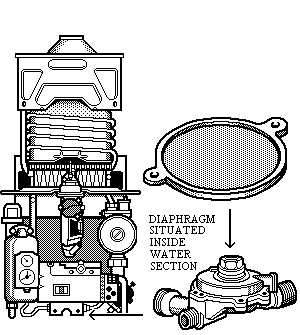

Remove the water section valve diaphragm and inspect it for signs of damage or wear.
DIAPHRAGM IN GOOD CONDITION
DIAPHRAGM IN POOR CONDITION
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
