FUSES 2 AMP
Set Appliance State:
Mains Power Off
Set Multimeter to Resistance
Isolate Mains Power to appliance as per TOPs P4
Measurement:

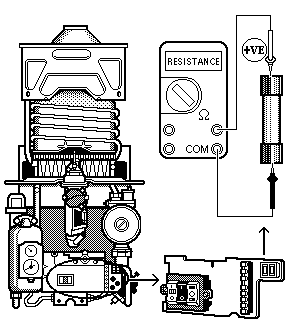

Remove the two fuses located on the switch PCB and check their resistances.
Replace fuses after test.
BOTH FUSE RESISTANCES SHORT CIRCUIT
EITHER OR BOTH FUSE RESISTANCES OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
