Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
Discharge and drain boiler

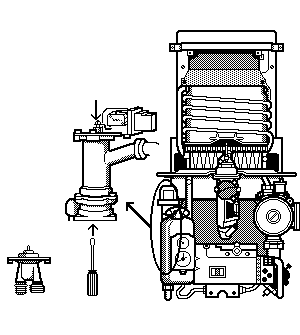

Remove wax capsule housing and wax capsule from the base of the diverter valve (1)
Remove wax capsule housing and wax capsule from the base of the diverter valve (1)
Observation:
Using a screwdriver or other suitable tool push up the diverter valve spindle then release.
Does valve spindle move up and down freely operating the microswitches on top of the diverter valve?
Does valve spindle move up and down freely operating the microswitches on top of the diverter valve?
Isolate as per TOPs P4
and refit as necessary
