Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand

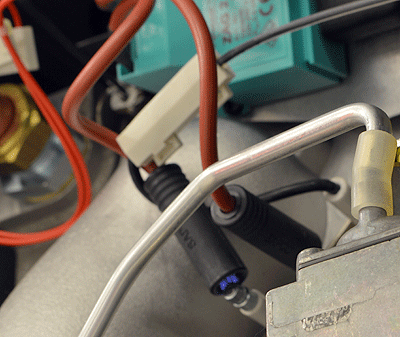

Remove electrode lead from bottom electrode &
Place against electrode as illustrated
Do not touch any part of the appliance during this test
Place against electrode as illustrated
Do not touch any part of the appliance during this test
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance if required.
Allow ignition sequence to commence.
Does sparking occur (see note)?
Note.
Sparking duration is approximately 5 seconds during the sparking phase of ignition with a 15 second interval, the boiler will enter lockout after 3 attempts of ignition, reset boiler as required until test is complete.
Allow ignition sequence to commence.
Does sparking occur (see note)?
Note.
Sparking duration is approximately 5 seconds during the sparking phase of ignition with a 15 second interval, the boiler will enter lockout after 3 attempts of ignition, reset boiler as required until test is complete.
Isolate as per TOPs P4
and refit as necessary
