RESISTANCE FAN CONTROL HARNESS

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove fan control connector from fan assembly

Measure the resistance (continuity) across the fan control harness leads.
Connections are;

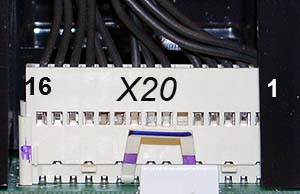

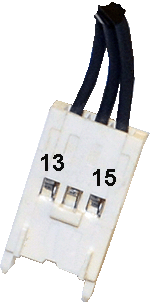

X20 connector pins 13,14 & 15 to corresponding connection on fan control connector.
Expected resistance is continuity (zero resistance).

Note.
1. PCB connector numbers can be found on the board.
2. Ensure a good connection is made or misdiagnosis will occur.
