XSol Diagnostic System

RESISTANCE FUSE F4 (PCB)

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Remove PCB fuse

Measurement:

Measure the resistance of the PCB fuse.
Expected resistance short circuit.

vm vitodens 100-w 35 compact inner blr pcb ex.gif

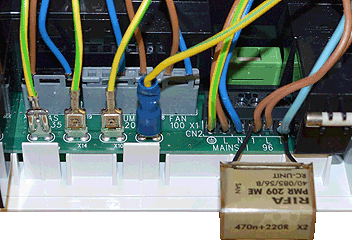

vm vitodens 100-w 35 compact pcb conns right.gif
