INFORMATION CASE REMOVAL

Observation:

vm vitodens 100-w 35 compact outer case.gif



vm vitodens 100-w 35 compact inner case.gif



vm vitodens 100-w 35 compact inner blr pcb dwn cover on.gif

@highlight circle05.gif

@highlight circle05.gif

vm vitodens 100-w 35 compact inner blr pcb ex.gif

@highlight circle05.gif

@highlight circle05.gif

Undo the two screws on the underside of the facia; do not remove them completely. Remove the front panel.

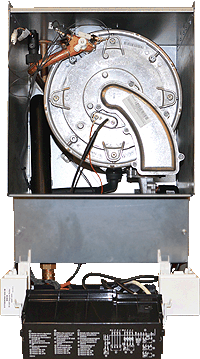

Release plastic clips, hinge PCB down.

Plastic clips

Access PCB, release four plastic clips, remove cover.

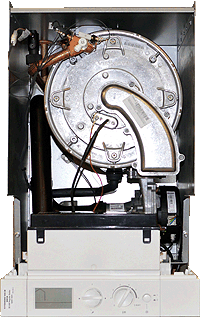

Access inner boiler, remove 2x nuts & remove cover
