Set Appliance State:
Gas Off
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
Refit wires to APS if you have not already done so

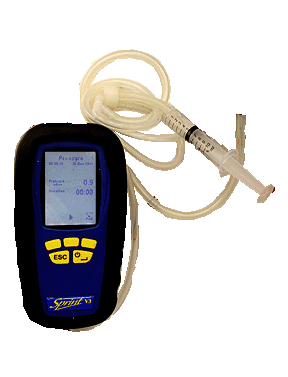

Connect the air pressure switch charge kit to +ve connection on the air pressure switch, disconnect the -ve connection and ensure there is no pressure
Ensure that the Boiler Thermostat is set to MAX
Connect the air pressure switch charge kit to +ve connection on the air pressure switch, disconnect the -ve connection and ensure there is no pressure
Ensure that the Boiler Thermostat is set to MAX
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Approximately 2 seconds after the fan starts to run increase
the pressure via the syringe to the point that continuity
was measured on the previous test.
With the APS manually made can sparking now
be observed between the ignition electrodes?
Note:
If sparking is not noticed it is permissible
to increase the pressure by up to 50%
the pressure via the syringe to the point that continuity
was measured on the previous test.
With the APS manually made can sparking now
be observed between the ignition electrodes?
Note:
If sparking is not noticed it is permissible
to increase the pressure by up to 50%
Isolate as per TOPs P4
and refit as necessary
