RESISTANCE THERMISTOR FLOW

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

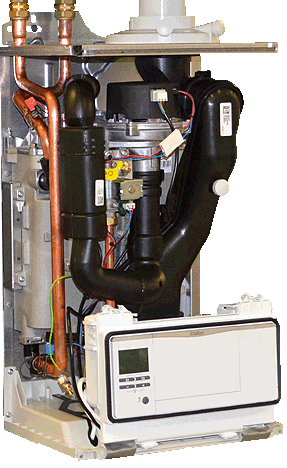

Remove air intake tube to gain access
Remove connector from flow thermistor

Measure for resistance across the exposed pins of the flow thermistor.

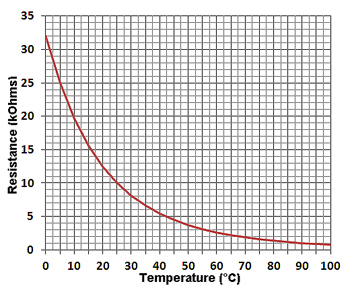

Resistances vary with temperature and should conform approximately to the table below:

Note: Clicking on the resistance table will switch between table and graph view.
