Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |

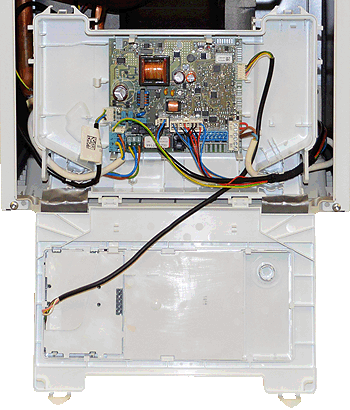

Remove connector X51 from the PCB
Remove connector from the Display PCB
Remove connector from the Display PCB
Measurement:

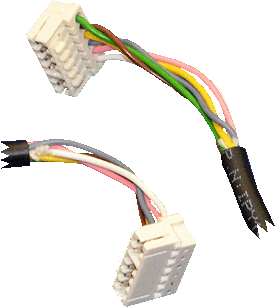

Measure the resistance across each of the wires in the harness.
Expect continuity / zero resistance on each wire.
Also visually inspect the condition of the harness.
Are the resistances as expected and
is the harness in good condition?
Expect continuity / zero resistance on each wire.
Also visually inspect the condition of the harness.
Are the resistances as expected and
is the harness in good condition?

Isolate as per TOPs P4
and refit as necessary
