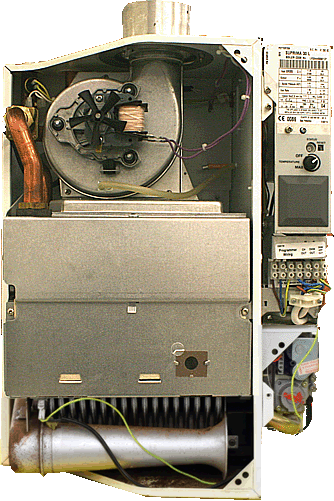

RESISTANCE ELECTRODE SPARK HARNESS
Set Appliance State:
Isolate Mains Power to appliance as per TOPs P4
Set Multimeter to Resistance
Remove flame detection electrode from its housing
Measurement:

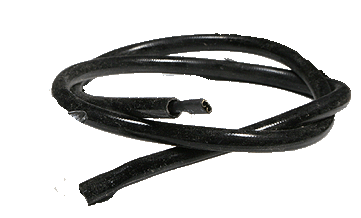

Thoroughly check the electrode lead for signs of damage, carry out a continuity check on the lead.
ELECTRODE LEAD CONDITION SATISFACTORY & RESISTANCE SHORT CIRCUIT
ELECTRODE LEAD UNSATISFACTORY OR RESISTANCE OPEN CIRCUIT
After test don't forget
Isolate as per TOPs P4
and refit as necessary
Isolate as per TOPs P4
and refit as necessary
