GC Number 41 607 62
Remove decorative outer casing door by pulling the bottom of the door from its fixing clips and pushing upwards until it is clear of its top fixing.
Remove bottom decorative panel.

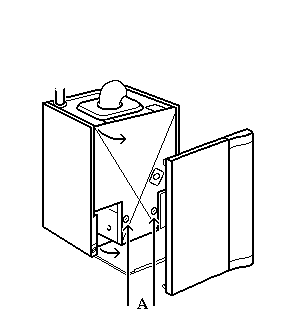

Remove functional case door by undoing the two lower securing screws (A) and lift door off the two upper hinge brackets.
Note: The appliance is fitted with a single digit display which is located on the front of the control box behind the hinged door.
The display serves two functions:
To display current boiler operating status.
To help identify fault areas.
