Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
POTTERTON PROMAX HE STORE
1
2
3
4
5
6

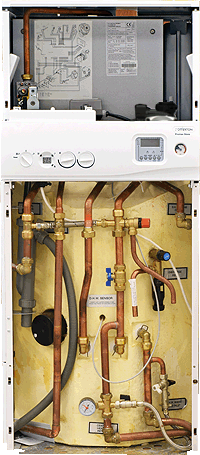

Panels (1), (4) and (5) are held on by latches and can be removed by gently pulling away from the appliance.
The front fascia (2) can be lowered
by removing two screws located
behind panel (1).
Panel (3) is held by two latches and two screws, located behind panel (4).
The inner combustion chamber (6) can be accessed by unscrewing the screws (T30 torx) on each corner.
The front fascia (2) can be lowered
by removing two screws located
behind panel (1).
Panel (3) is held by two latches and two screws, located behind panel (4).
The inner combustion chamber (6) can be accessed by unscrewing the screws (T30 torx) on each corner.
Case Removal:
