Set Appliance State:
| Isolate Mains Power to appliance as per TOPs P4 |
CH Demand
CH temperature control to max
Ensure boiler is cool

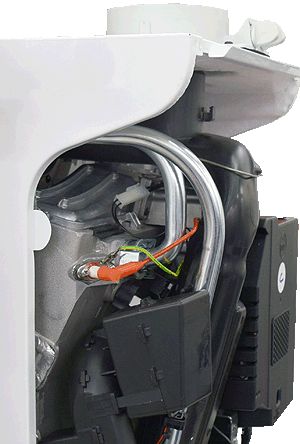

Attach temperature clamps to flow & return pipe
Attach temperature clamps to flow & return pipe
| WARNING! - Mains voltage is expected during test follow TOPs P4 live testing procedure |
Observation:
Reset appliance, press and hold the reset button until the chimney
sweep button led flashes rapidly, then release the reset button.
Allow boiler to ignite and run for CH, observe the temperature of the flow & return pipes.
1. Does the flow pipe temperature increase rapidly compared to the return pipe & temperature protection occurs?
2. Does the temperature differential between flow and return exceed 30°C with temperature protection occurring?
sweep button led flashes rapidly, then release the reset button.
Allow boiler to ignite and run for CH, observe the temperature of the flow & return pipes.
1. Does the flow pipe temperature increase rapidly compared to the return pipe & temperature protection occurs?
2. Does the temperature differential between flow and return exceed 30°C with temperature protection occurring?
