XSol Diagnostic System

RESISTANCE FLOW THERMISTOR AND HARNESS

Set Appliance State:

Isolate Mains Power to appliance as per TOPs P4

Set Multimeter to Resistance

Disconnect connector X401 from the PCB

Measurement:

Measure the resistance between the
two red wires (pins 1 and 2) on X401.
Resistance should conform approximately to the table below:

bx pt promax 24 store erp h45744 har x401.gif

bx pt promax 24 store erp pcb and wiring.jpg




Temperature Range (°C)	Resistance Range
0°C to 10°C	20.0kΩ - 32.0kΩ
10°C to 20°C	12.0kΩ - 20.0kΩ
20°C to 30°C	8.1kΩ - 12.0kΩ
30°C to 40°C	5.4kΩ - 8.1kΩ
40°C to 50°C	3.7kΩ - 5.4kΩ
50°C to 60°C	2.6kΩ - 3.7kΩ
60°C to 70°C	1.9kΩ - 2.6kΩ
70°C to 80°C	1.4kΩ - 1.9kΩ
80°C to 90°C	1.0kΩ - 1.4kΩ
90°C to 100°C	800Ω - 1.0kΩ

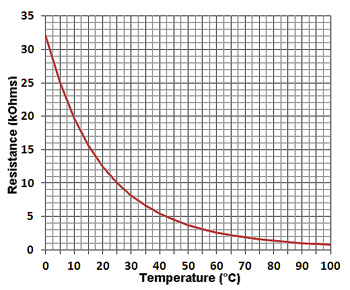

Note: Clicking on the resistance table will switch between table and graph view.
